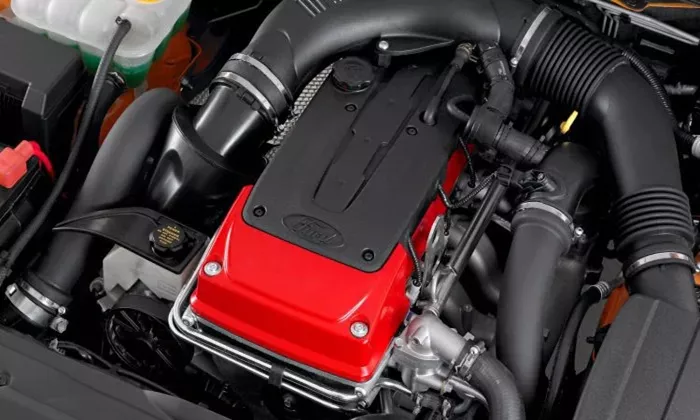

Inline engines, also known as straight engines, are a common type of internal combustion engine design where the cylinders are arranged in a single row. This configuration is prevalent in various vehicles and machinery due to its simplicity, cost-effectiveness, and reliability. In this article, we will delve into the details of inline engines, including their working principle, types, advantages, and applications.
Working Principle of Inline Engines
Inline engines operate on the basic principle of internal combustion, where fuel is ignited within the cylinders to produce power. The cylinders are aligned in a straight line, and the pistons move up and down in these cylinders, driven by the combustion process. The linear arrangement of the cylinders allows for a straightforward design, with the camshaft typically mounted to the cylinder block in a tappet and pushrod arrangement.
The valves are usually located inside the cylinder block or cylinder head next to the piston. This configuration simplifies the engine’s design and reduces the complexity of the valvetrain. The simplicity of the inline engine design contributes to its reliability and ease of maintenance.
Types of Inline Engines
Inline engines come in various configurations, depending on the number of cylinders and the specific application. The most common types include:
Inline 4 (I4)
The inline 4-cylinder engine, or I4, is the most widely used engine configuration in vehicles with a displacement of up to 3.0 liters. It is known for its compact size, ease of manufacturing, and low cost. The I4 engine provides a good balance between power and fuel efficiency, making it suitable for a wide range of applications, from small cars to larger SUVs.
Inline 6 (I6)
The inline 6-cylinder engine, or I6, is another popular configuration, particularly in midsize to large vehicles. It offers a smoother power delivery and better balance compared to the I4 engine due to its even number of cylinders. The I6 engine is known for its reliability and is often found in luxury and performance vehicles.
Inline 8 (I8)
The inline 8-cylinder engine, or I8, is a less common configuration but is known for its smooth operation and high power output. The I8 engine is often used in high-performance and luxury vehicles, where its balanced design and high torque output are highly valued. However, the long crankshaft of the I8 engine can lead to torsional vibrations, which require the use of counterweights or harmonic balancers to mitigate.
Advantages of Inline Engines
Inline engines offer several advantages over other engine configurations, including:
Simplicity and Cost-Effectiveness
The straightforward design of inline engines makes them easier and cheaper to manufacture. The simplicity of the valvetrain and the use of a single cylinder head contribute to lower production costs and easier maintenance.
Compact Size
Inline engines are generally more compact than their V-shaped counterparts, making them suitable for vehicles with limited engine bay space. This compactness is particularly advantageous in small cars and motorcycles.
Smooth Operation
Inline engines with an even number of cylinders, such as the I6 and I8, offer excellent balance and smooth operation. This is due to the symmetrical firing order, which helps to cancel out vibrations and provide a more refined driving experience.
Low Maintenance
The simplicity of the inline engine design means that there are fewer parts to wear out or fail, resulting in lower maintenance requirements and longer intervals between service visits.
Applications of Inline Engines
Inline engines are used in a wide range of applications, from automobiles to motorcycles and small machinery. Some of the common applications include:
Automobiles
Inline engines are the most common type of engine found in cars, particularly in vehicles with a displacement of up to 3.0 liters. They are used in a variety of vehicles, from small hatchbacks to large sedans and SUVs.
Motorcycles
Inline engines are also widely used in motorcycles, particularly in smaller displacement bikes. The compact size and simplicity of the inline engine make it an ideal choice for motorcycles, where space and weight are critical factors.
Small Machinery
Inline engines are used in various small machinery and equipment, such as lawnmowers, chainsaws, and generators. Their reliability, ease of maintenance, and compact size make them suitable for these applications.
Disadvantages of Inline Engines
Despite their many advantages, inline engines also have some disadvantages, including:
Length and Packaging
As the number of cylinders increases, the length of the inline engine also increases. This can make it challenging to package the engine in vehicles with limited engine bay space. In some cases, this may require the use of a longer hood or other design compromises.
Vibration and Balance
Inline engines with an odd number of cylinders, such as the I5 or I7, can experience increased vibration and imbalance. This is due to the uneven firing order, which can lead to a rougher running engine and increased wear on components.
Limited High-Performance Potential
While inline engines can provide good performance, they may not match the power output and efficiency of more complex engine configurations, such as V6 or V8 engines, particularly at higher engine speeds.
Conclusion
Inline engines are a simple, cost-effective, and reliable type of internal combustion engine design that is widely used in various applications. Their compact size, ease of maintenance, and smooth operation make them a popular choice for manufacturers and consumers alike. While they do have some limitations, such as increased length and potential vibration issues with odd-numbered cylinders, the advantages of inline engines often outweigh these disadvantages. As technology continues to advance, inline engines are likely to remain a staple in the automotive and machinery industries for the foreseeable future.
