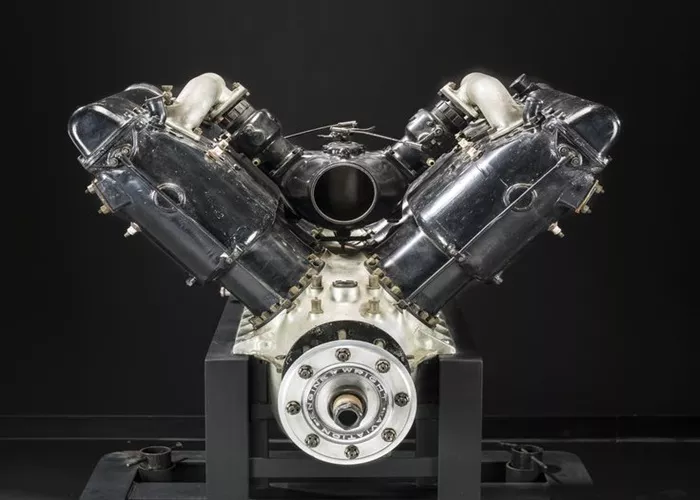

The V-type engine, often referred to as a V-engine, is a common internal combustion engine configuration where the cylinders are arranged in two banks set at an angle to each other, forming a “V” shape when viewed from the front. This design is widely used in various applications, including automobiles, motorcycles, aircraft, and even marine vessels. The V-type engine is renowned for its compactness, balance, and ability to deliver high power output, making it a popular choice among engineers and manufacturers.
Historical Development of V-type Engines
The concept of the V-type engine dates back to the early 20th century. The first V-type engine was developed by Daimler-Motoren-Gesellschaft (DMG) in 1889, which featured a V-twin configuration. Over the years, the design evolved, and by the 1920s, V8 engines became increasingly popular in the automotive industry. The V12 and V16 configurations were also developed for high-performance and luxury vehicles, as well as for aircraft during World War II.
Basic Structure and Components
Cylinder Arrangement
The defining characteristic of a V-type engine is its cylinder arrangement. The cylinders are divided into two banks, typically set at an angle of 60° or 90° to each other, although other angles are also possible. This arrangement allows for a more compact engine design compared to inline engines, where all cylinders are aligned in a single row.
Crankshaft
The crankshaft in a V-type engine is shared between the two cylinder banks. It converts the linear motion of the pistons into rotational motion, which is then transmitted to the wheels or propeller. The crankshaft design in V-type engines is more complex than in inline engines due to the need to accommodate the offset cylinders.
Cylinder Heads
Each bank of cylinders in a V-type engine has its own cylinder head, which houses the valves, spark plugs, and fuel injectors. The cylinder heads are typically made of aluminum or cast iron and are designed to withstand high temperatures and pressures.
Lubrication System
The lubrication system in a V-type engine is crucial for maintaining the engine’s performance and longevity. Oil is pumped through passages in the engine block and cylinder heads to lubricate the moving parts, including the crankshaft, pistons, and valves. The oil also helps to cool the engine by dissipating heat.
Types of V-type Engines
V-twin Engine
The V-twin engine is the simplest form of V-type engine, featuring two cylinders arranged in a V-shape. This configuration is commonly used in motorcycles, such as those produced by Harley-Davidson and Ducati. The V-twin engine is known for its torque and distinctive sound.
V4 Engine
The V4 engine has four cylinders arranged in two banks of two. This configuration is less common than the V6 or V8 but is used in some high-performance motorcycles and compact cars. The V4 engine offers a good balance between power and fuel efficiency.
V6 Engine
The V6 engine is one of the most popular V-type engine configurations, featuring six cylinders arranged in two banks of three. It is widely used in passenger cars, SUVs, and light trucks. The V6 engine provides a good balance of power, fuel efficiency, and compactness.
V8 Engine
The V8 engine has eight cylinders arranged in two banks of four. It is commonly used in high-performance cars, trucks, and SUVs. The V8 engine is known for its power and smooth operation, making it a favorite among enthusiasts.
V10 Engine
The V10 engine features ten cylinders arranged in two banks of five. This configuration is less common but is used in some high-performance sports cars and racing vehicles. The V10 engine offers high power output and a distinctive exhaust note.
V12 Engine
The V12 engine has twelve cylinders arranged in two banks of six. It is used in luxury cars, high-performance sports cars, and some aircraft. The V12 engine is known for its smooth operation and high power output.
V16 Engine
The V16 engine is the largest and most complex V-type engine configuration, featuring sixteen cylinders arranged in two banks of eight. It is used in some luxury cars and high-performance vehicles. The V16 engine offers unparalleled power and smoothness but is also more expensive and complex to manufacture.
Advantages of V-type Engines
Compactness
One of the main advantages of V-type engines is their compactness. The V-shape allows for a shorter engine length compared to inline engines, making it easier to fit into smaller engine bays. This is particularly beneficial in vehicles with limited space, such as sports cars and motorcycles.
Balance and Smoothness
V-type engines are generally more balanced and smoother than inline engines. The opposing cylinders help to cancel out vibrations, resulting in a smoother operation. This is especially true for V6 and V8 engines, which are known for their smooth and refined performance.
High Power Output
V-type engines are capable of producing high power output, making them suitable for high-performance applications. The multiple cylinders allow for more fuel to be burned, resulting in greater power and torque. This is why V8 and V12 engines are commonly used in sports cars and luxury vehicles.
Versatility
V-type engines are versatile and can be used in a wide range of applications, from motorcycles to aircraft. The different configurations, such as V-twin, V6, and V8, allow manufacturers to choose the best engine for their specific needs.
Disadvantages of V-type Engines
Complexity
V-type engines are more complex than inline engines, both in terms of design and manufacturing. The need for two cylinder heads, a more complex crankshaft, and additional components increases the cost and difficulty of production.
Weight
While V-type engines are more compact than inline engines, they can be heavier due to the additional components. This can affect the overall weight and balance of the vehicle, particularly in high-performance applications where weight is a critical factor.
Cost
The complexity of V-type engines also translates to higher costs. The additional components and more complex manufacturing process make V-type engines more expensive to produce than inline engines. This is why V-type engines are typically found in higher-end vehicles.
Applications of V-type Engines
Automotive Industry
V-type engines are widely used in the automotive industry, particularly in high-performance and luxury vehicles. The V6 and V8 configurations are the most common, offering a good balance of power, efficiency, and smoothness. V12 and V16 engines are also used in some high-end luxury cars and sports cars.
Motorcycles
V-twin engines are commonly used in motorcycles, particularly in cruisers and touring bikes. The V-twin configuration provides good torque and a distinctive sound, making it a favorite among motorcycle enthusiasts. V4 engines are also used in some high-performance motorcycles.
Aircraft
V-type engines have been used in aircraft since the early 20th century. The V12 configuration was particularly popular during World War II, powering many fighter planes and bombers. Today, V-type engines are still used in some aircraft, particularly in smaller, piston-driven planes.
Marine Applications
V-type engines are also used in marine applications, particularly in high-performance boats and yachts. The V8 and V12 configurations are common, providing the power needed for fast and efficient water travel.
Conclusion
The V-type engine is a versatile and powerful internal combustion engine configuration that has been used in a wide range of applications for over a century. Its compactness, balance, and high power output make it a popular choice among engineers and manufacturers. While the future of V-type engines may be uncertain due to the shift towards electrification, they are likely to continue to be used in niche markets where their unique characteristics are valued. As technology advances, V-type engines may become more efficient and cost-effective, ensuring their continued relevance in the automotive and other industries.
